Inlaid stud roller press roller sleeve - Customized Products - DETE MACHINERY

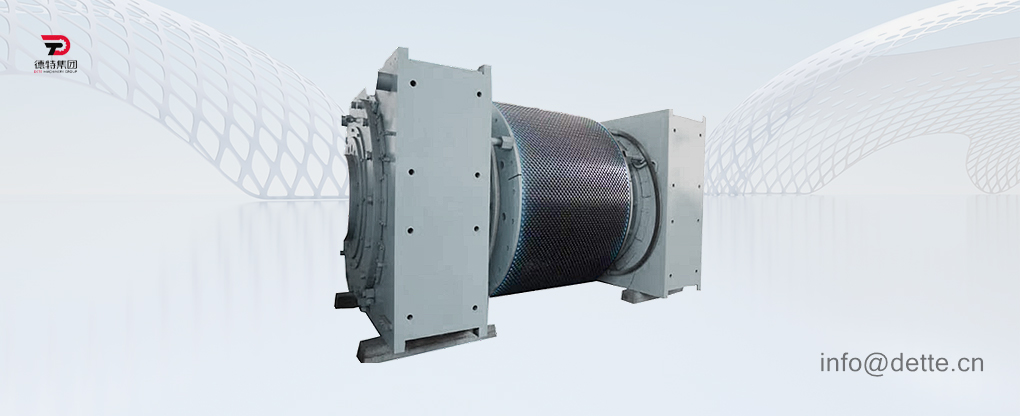

Product name： Inlaid stud roller press roller sleeve

Performance comparison table of three different roller surface forms :

Roller sleeve form	material	material properties	New roll surface service life		Roll surface Hardness	repairable renaturation	cost
Roller sleeve form	material	material properties	cement clinker	Cement raw meal	Roll surface Hardness	repairable renaturation	cost
Surfacing roll surface	Low carbon alloy steel + high Cr welding material	The mother body is a forging, and the tissue is caused by Good density, high strength	~8000h	~5000h	HRC58	High	lower
centrifugal pouring Cast composite roll surface	Medium carbon alloy steel + Cr + M0.V equal alloy cast steel	Integral casting, microstructure compactness phase Yeah, OK, relatively low intensity.	~8000h	~6000h	HRC60	Low	low
stud roll surface	Alloy steel + carbide nails	The mother body is a forging, and the tissue is caused by Good density, high strength	≥ 50000h	≥ 25000h	HRC67	High	higher

Technical parameters:

Serial number	Name	Specifications	Roller press model
1	Extrusion roller	1200*800	CITIC Heavy Industries：RPV120-80、 RP120 80
2	Roller sleeve	1200*800	CITIC Heavy Industries:RPV120-80、 RP120-80
3	Roller	1200*800	CITIC Heavy Industries：RPV120-80、 RP120-80
4	Extrusion roller	1500*1000	Haichuan Equipment：G150*100 Hefei Institute：HFCG150 -100
5	Roller sleeve	1500*1000	Haichuan Equipment：G150*100 Hefei Institute：HFCG150 -100
6	Roller	1500*1000	Haichuan Equipment：G150*100 Hefei Institute：HFCG150 -100
7	Extrusion roller	1600*1400	Hefei Institute： HFCG160-140
8	Roller sleeve	1600*1400	Hefei Institute： HFCG160-140
9	Roller	1600*1400	Hefei Institute： HFCG160-140
10	Extrusion roller	1700*1200	Haichuan Equipment:G170*120 CITIC Heavy Industries:RP170-120
11	Roller sleeve	1700*1200	Haichuan Equipment:G170*120 CITIC Heavy Industries:RP170-120
12	Roller	1700*1200	Haichuan Equipment:G170*120 CITIC Heavy Industries:RP170-120
13	Extrusion roller	1800*1600	Haichuan Equipment:G180*160 CITIC Heavy Industries:RP180-160 Hefei Institute:HFCG180-160
14	Roller sleeve	1800*1600	Haichuan Equipment:G180*160 CITIC Heavy Industries:RP180-160 Hefei Institute:HFCG180-160
15	Roller	1800*1600	Haichuan Equipment:G180*160 CITIC Heavy Industries:RP180-160 Hefei Institute:HFCG180-160

×
